Automatic Labeling Machine

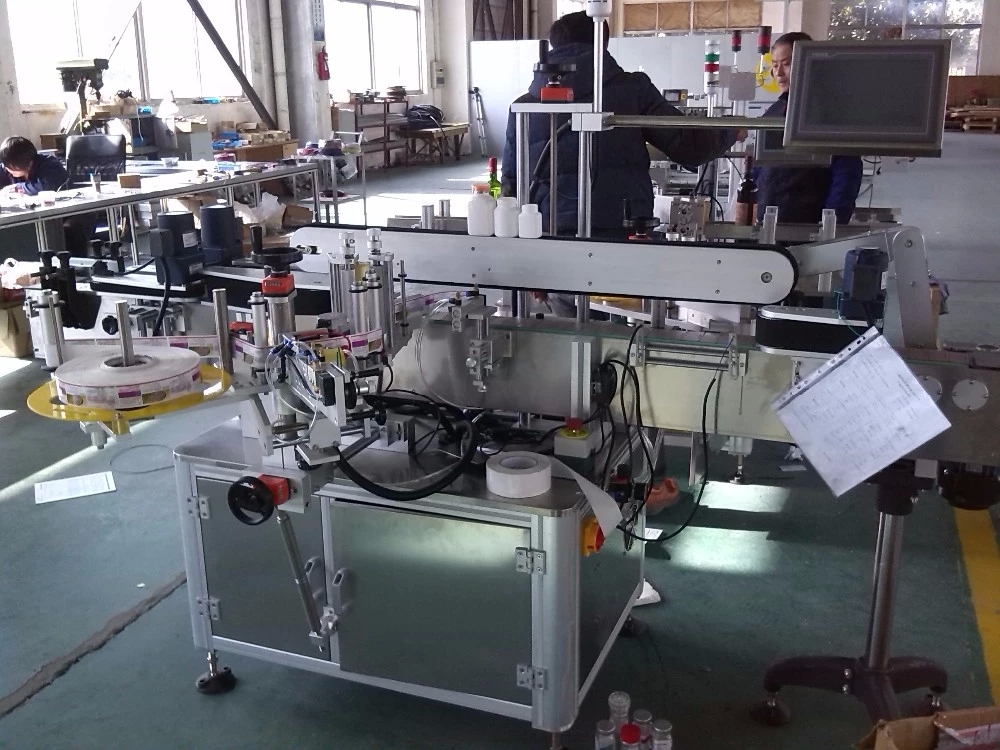

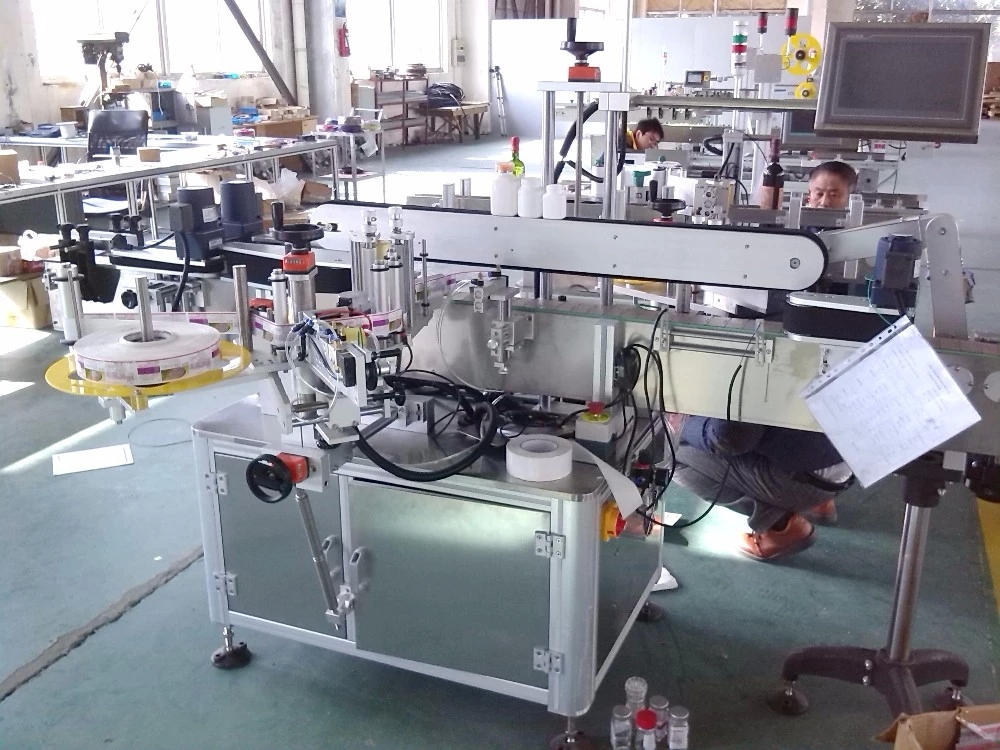

Automatic double labels labeling machine

SPECIFICATIONS FOR FRS-ALMA DOUBLE LABELS LABELING MACHINE
1
Driving mode
/
Servo control system
2
Operating direction
/
Left or Right
3
Production
bottle/min
50-100 bottles/min
4
Labeling accuracy
/
±1.0 mm(depend on roughness of the surface)
5
The specification of label
/
Not transparent ,we also customize machine to use transparent label
6
Label roll core
mm
76 mm
7
Label roll diameter
mm
350 mm (max)
8
The size of label
mm
Width:15-150mm             length:15-300mm
9
The diameter of bottle
mm
Max 82.6mm(standard machine)
10
Power
W
800W
11
Voltage
/
AC220V 50/60HZ Single side
12
Machine weight
kg
500kg
13
Machine dimensions
mm
2400*1350*1500mm



Main Features

1)The whole machine adopts a mature technology PLC control system, and touch screen,the operation of the machine is stable and high speed
2)Upgraded dished label station design, can label conical bottle
3)Screw adjustment suppressing mechanism, the movement is accurate
4)Synchronization chain mechanism to ensure smooth and precise calibration
5)Labeling transparent label without bubble, labeling adhesive sticker does not wrinkle
