Automatic Labeling Machine

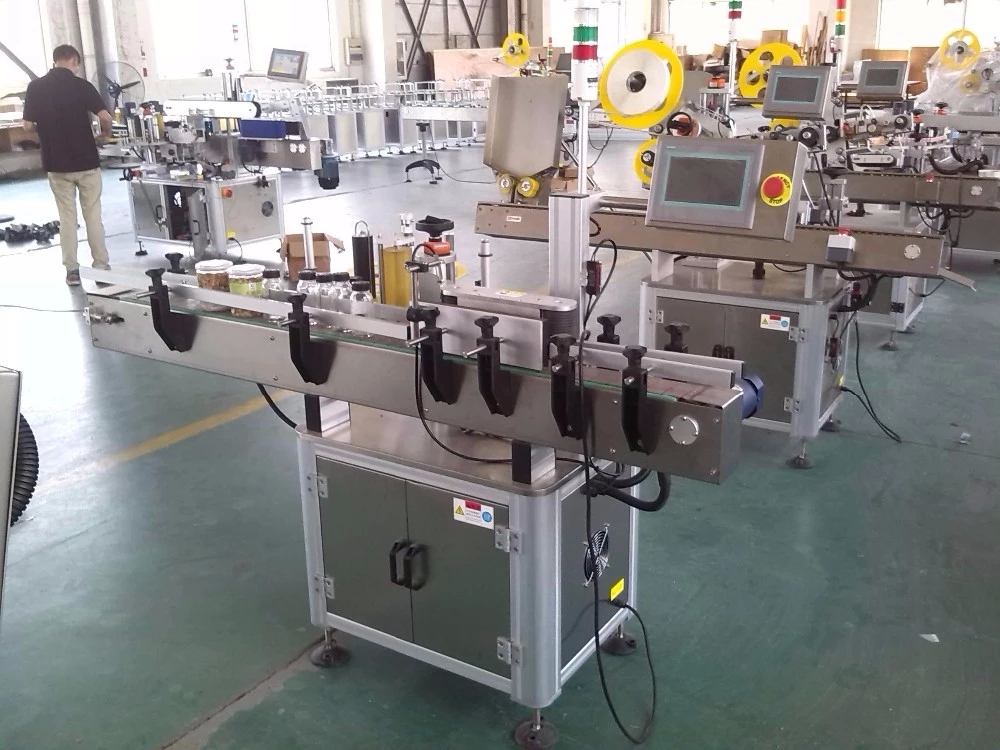

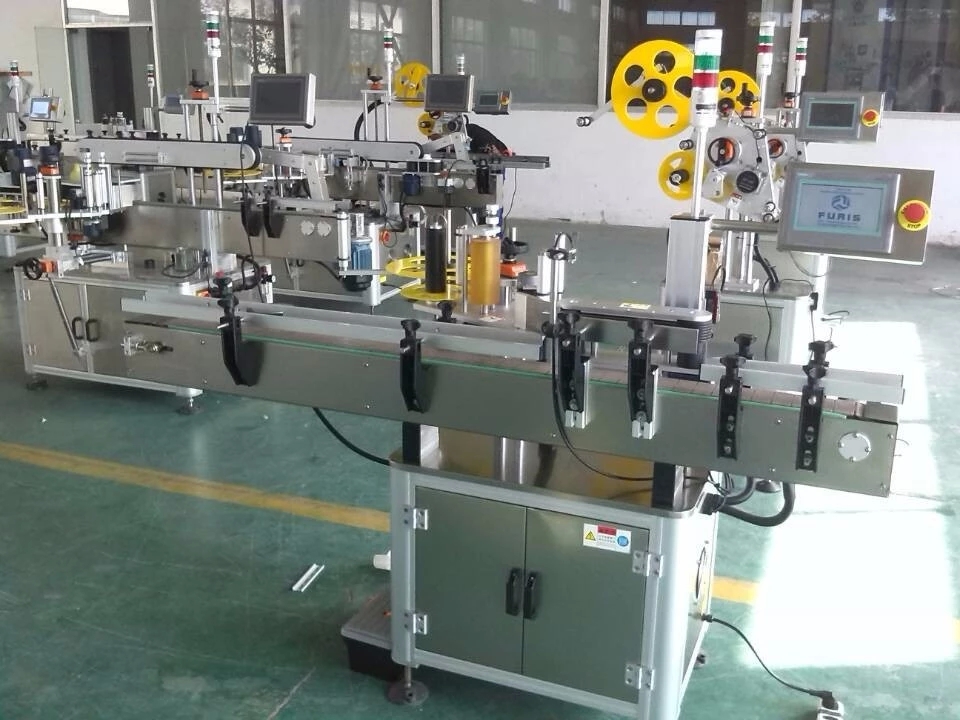

Automatic round bottle labeling machine

SPECIFICATIONS FOR FRS-PLMA AUTOMATIC  ROUND BOTTLE LABELING MACHINE
Model
FRS-PLMA
Driving Mode
Step system
Operating direction
Left or Right
Labeling Accuracy
±1.0 mm
Labeling Speed
50-210pcs/min
The application of bottle
Outer diameter 16-120mm Height 20-280mm
The application of label
Height 10-140mm Length 15-310mm
The inner diameter of label volume
76mm
The outer diameter of label volume
350mm (max)
The power of motor
300W
Voltage
AC220V 50/60HZ Single phase
Size of machine
1800*700*1270mm
Weight of machine
200kg



Main Features

1)Machine-wide adoption of a mature technology PLC control system, so that the whole stable, high-speed
2)Operating system using touch-screen control, simple, practical, efficient
3)Upgraded disc label station design,can label conical flask
4)Screw adjustment to suppress body movements accurately
5)Synchronization chain mechanism to ensure smooth and precise calibration
6)Labeling transparent label does not bubble, labeling self-adhesive label does not wrinkle
7)Can be with servo motor,make labeling accuracy

8)The advanced function, simple operation, and compact structure
9)Imported electric elements, stable performance, low failure rate
10)Can adopt servo labeling system, high speed and accuracy
11)With functions of no material non-labeling, no label automatic alarm
12)Can be operated alone or used on-line as wel
