Capsule Filling Machine

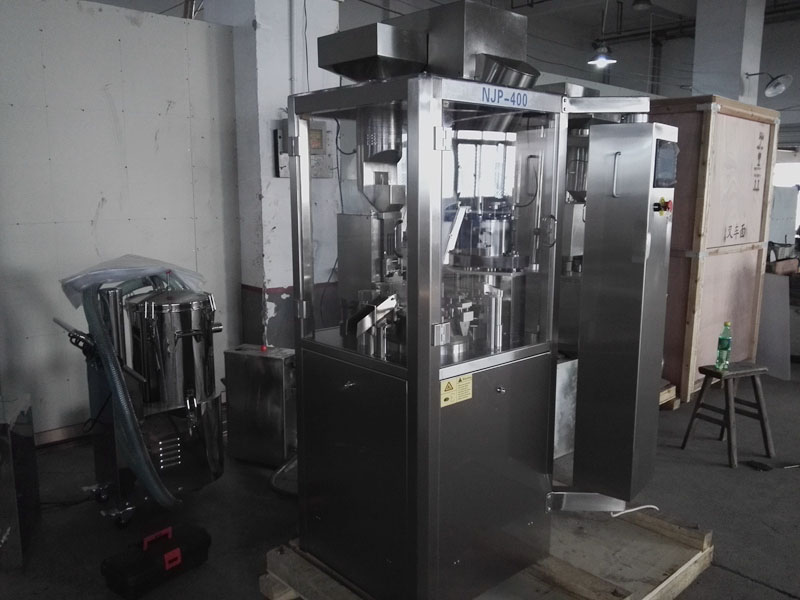

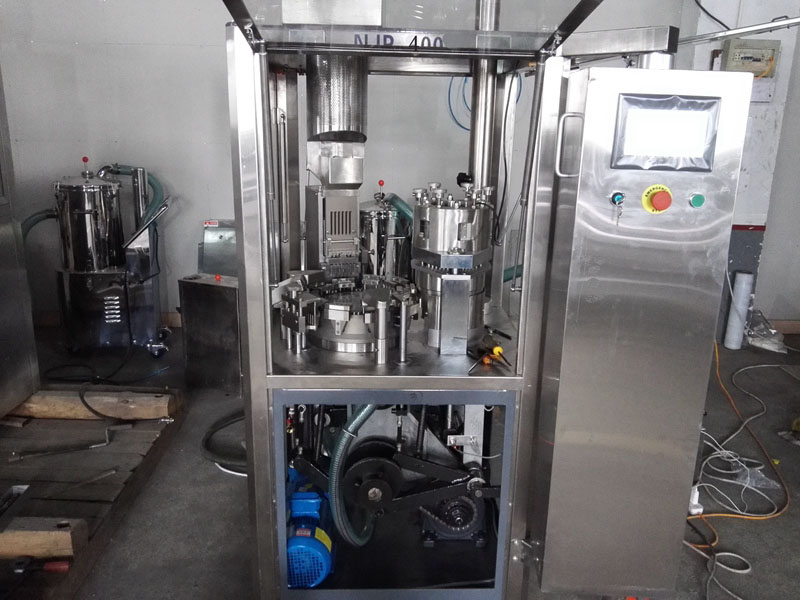

NJP-400 Automatic capsule filling machine

Applying:





The machine is designed and further improved on the base of original full automatic capsule filling machine from both home and aboard. With high technology and exclusive performance, it has reached international leading level.

It is an ideal equipment for capsule and medicine in pharmaceutical industry which is in full compliance with GMP requirements.





Principal:

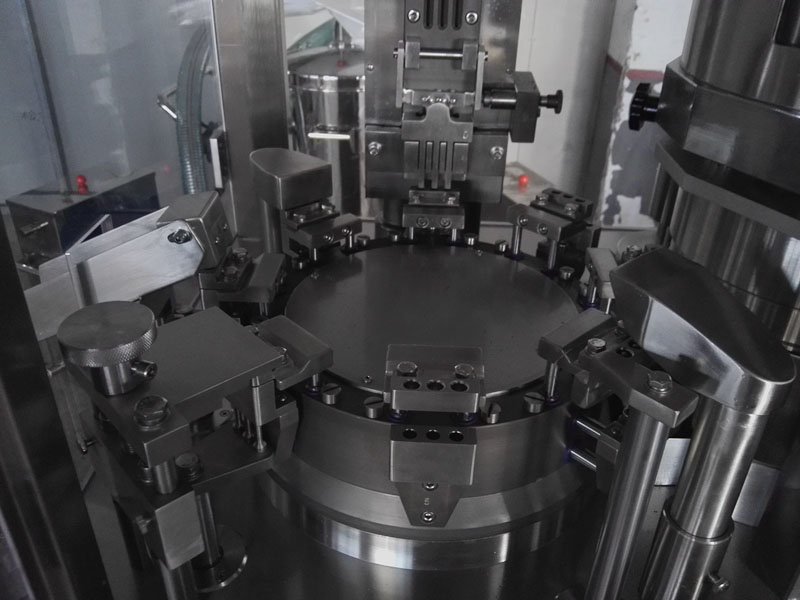

Capsule  Part:  Loading the empty capsule into capsule hopper, the empty

capsule then get into capsule sowing plate, automatic make U turn, divide the top and body of capsule
when pass by vacuum, automatic filling while come into dosage tray, it has automatic reject function if the capsule is flat or its top and body can not be divided. After that, automatic locking and output the final products.
Powder or pellets part: Loading the medicine into medicine hopper, then the medicine automatic  come  down,  (the  machine  stop  automatically while  no medicine), dosage tray going filling for five times, make the medicine save into medicine pole. Finally, medicine is filled into empty capsule.





Feature:





It adopted PLC programmable controller, step-less frequency inverter, man-machine interface to operate and touch screen display  With fault or lack of material, the machine will automatically alarm and shut down, and eliminate automatic alarm after troubleshooting.

Good-looking appearance, exquisite workmanship, eases of operation, simplicity of use.

Filling seat and measuring plate are designed as one unit to make measuring plate and filling rod without deviation, avoid friction between filling rod and measuring plate, improve its precision, furthermore, it enhances the machine’s life greatly.

Ineligible capsule can be eliminated automatically, the medicine in the capsule can be recycled and be reused, thus it can improve greatly the economic efficiency.

Simplicity and convenience of dismantling, installation and clean, various models of mould can be replaced





Parameters:





Model:NJP-400
Capacity:400capsules/minute
Machine suitable for:capsule Size #00 to 5
Power supply:

220v/380v 50Hz three phase

(it can be changed depend on your requirement)

Power consume:3kw
Quantity of mould bores:12pcs
Noise standard:﹤75dB(A)
Weight:900kgs
Overall dimension:1000×1450×2000mm
