Capsule Filling Machine

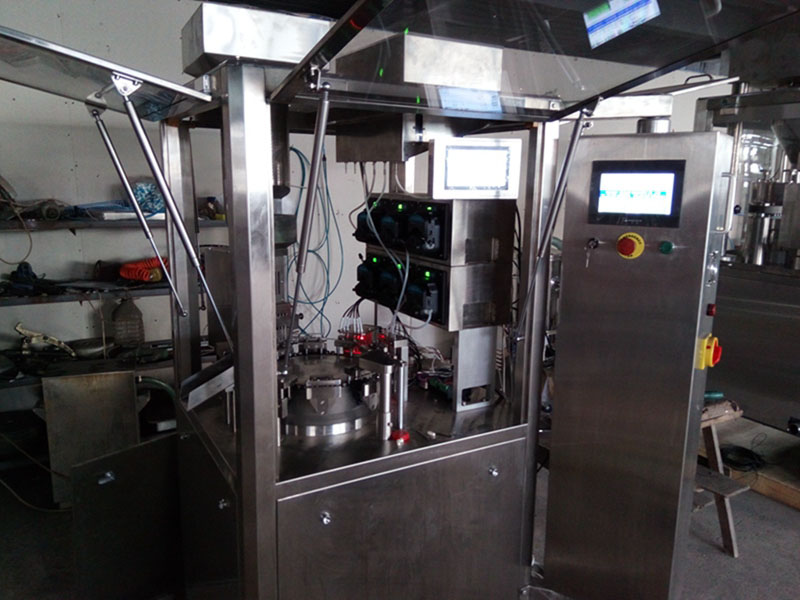

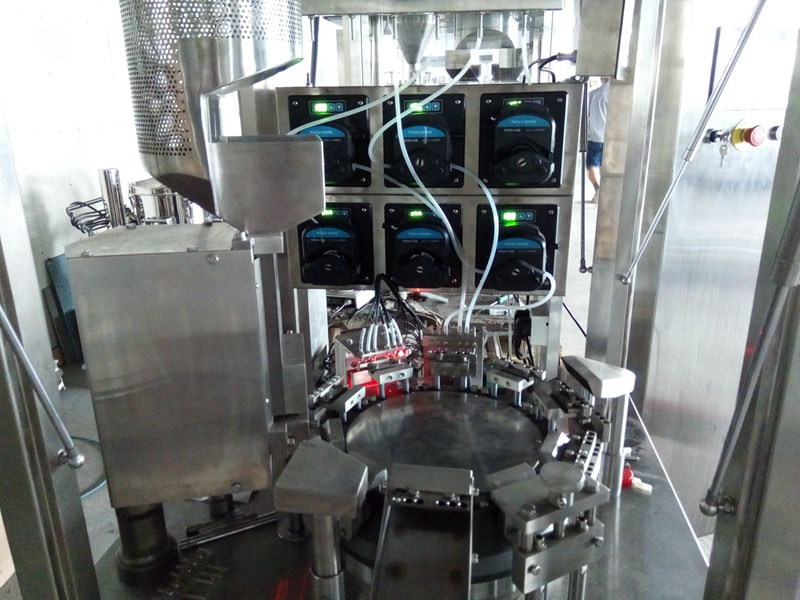

NF-260 Full atomatic liquid capsule filling machine

Applying:

The machine is designed and further improved on the base of original full automatic capsule filling machine from both home and aboard. With high technology and exclusive performance, it has reached international leading level.

It is an ideal equipment for capsule and medicine in pharmaceutical industry which is in full compliance with GMP requirements.

Feature:

It adopted PLC programmable controller, step-less frequency inverter, man-machine interface to operate and touch screen display With fault or lack of material, the machine will automatically alarm and shut down, and eliminate automatic alarmafter troubleshooting.

Good-looking appearance, exquisite workmanship, eases of operation, simplicity of use.

Filling seat and measuring plate are designed as one unit to make measuring plate and filling rod without deviation, avoid friction between filling rod and measuring plate, improve its precision, furthermore, it enhances the machine’s life greatly.

Ineligible capsule can be eliminated automatically, the medicine in the capsule can be recycled and be reused, thus it can improve greatly the economic efficiency.

Simplicity and convenience of dismantling, installation and clean, various models of mould can be replaced

Parameters:

MODEL

NJPL-1200

FillingDosage

Filling Nozzles

Powder,Pellets,Tablet

6 pcs

CapsuleSize

Capsulesize 00#-5#andsafetycapsuleA-E

Output(capsules/hour)

14400pcs

Power

380V50Hz3KW

NoiseIndex

<80dBA

OverallDimension(mm)

970×820×1900

Weight(kg)

900
