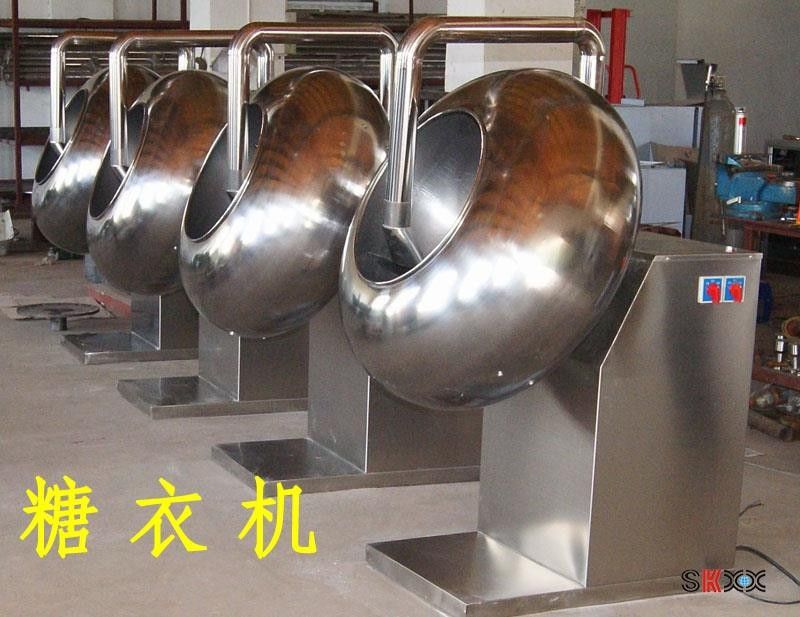

Tablet Coating Machine

Customized Mini Sugar Tablet Coating Machine 380V 50Hz Three Phase Voltage

Short Detail:
Boiler rotating speed:0-40 r.p.m
Production capacity: 1 Kg/time
Boiler diameter:200mm
Power Supply: 380V 50HZ Three Phase
Certificate: CE Certificate
Motor Power:370w
Model No.:SHL-200
Material: Stainless steel 304


Applying:

This type sugar coating machine is mainly used to press shaped slice, pill and the coating of granules in pharmaceutical industry, and also used for candy manufacturing or coating in foodstuff industry.

Sugarcoated tablets after polishing coating have polished surface, which can prevent oxidation, damping or volatilization, in addition, it can envelop bad smell and enable the drug to be conveniently identified and slow dissolution in the intestines and stomach.


Features:
1.Boiler rotates clockwise and sprays syrup and mixed syrup materials on the chip in the boiler in multiple times, enabling the syrup-mixed material to be evenly coated on the chip and sugarcoated tablets to tumble in the boiler. Meanwhile hot air is blown into the boiler to dry the surface moisture on tablets so as to produce certified sugarcoating pills.
2.The machine enables tablets to be formed in optimal materials curve flow in reasonable shape and stable linear velocity so as to meet the technological requirements of coating sugar-coat.


Parameters:

Model No BY-200
Boiler diameter mm 200
Production capacity (Kg/time) 1
Clockwise angle α (adjustable) 15˚~45˚
Boiler rotating speed 0-40
Main motor 370W
Fan motor 60W
Electric oven wire power (Kw) 0.8
Hot air outlet temperature(℃) 50-60
Machine weight (kg) 100




Competitive advantage:
1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Country:
USA (Distributor ),Italy distributor,Britishi(Distributor),India(Distributor)


Comany info:

We are mainly produce the pharma machine,pharma packing machine,and disposable non-woven take care product machine.Our product includes capsule filling machine,tablet press machine,powder mixing machine,powder grinding machine,tablet capsule counting machine,blister packing machine,cartoning machine,labeling machine,face mask machine,shoe cover machine,bouffant cap machine,body wamer pad machine,eye warmer pad machine,sheet bed machine,non-woven sheet folding machine,non-woven slitting machine,etc all kind of non-woven product machine.
